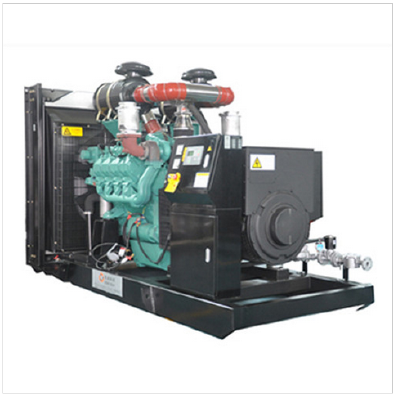

ShengDong Technology D Series Straw Gas Generator Sets

Unit Power System：
Power Technology from Germany DEUTZ of high-speed engine BF6M、BF8M、TBG620 series engine technology, on behalf of the world's advanced level.
Unit Control System：
We use specialized gas control system to realize the whole supervision and protection of the generator set runing. It can realize isolated grid running,multiple generator sets running together,grid connecting and remote monitoring.
Unit Design Concept：
Skid-mounted integrating with design and production.Imploded cooling system, control system and fuel decompression systems into platform.reducing the amount of on-site installated and commissioned time.
Safety Protection System：
Fuel system is equiped with safety valve,electromagnetic valve,warning system for Combustible gas leak.[ optional] and remote monitoring system (optional).
Components Supply Support：
D Series 80% of the parts of the engine and the BF6M、BF8M、and TBG620 series DEUTZ engine parts GM can DEUTZ service station in the world to obtain spare parts support.

Remarks:
1、Units with permanent brushless motor, Wallace MRS10NT series controller.
2、Scope of supply:gas engines, generators, controller, base, fan water tank, gas pressure reducing valve, gas filters, explosion-proof solenoid valve, starting batteries and connecting cables and accessories and technical data.
3、The use of air condition:Biomass gas should be filtered, gas-liquid separation voltage, if the temperature is too high, should also be cooled before it is used, the pressure variation rate ≤ 1kPa/min ≤ 20mg/Nm3, tar content, hydrogen content is ≤ 6%, impurity particle size ≤ 5 μ m, moisture content is ≤ 20mg/Nm3, impurity content ≤ 30mg/Nm3.
