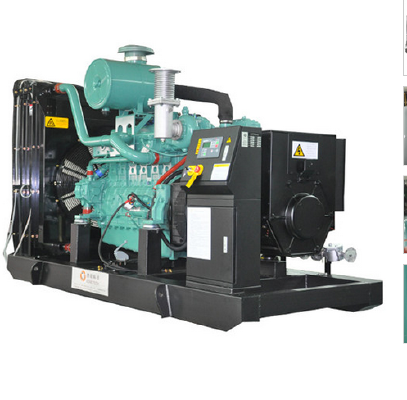

Korea DOOSAN Natural Gas Generator Sets

Unit Power System:
Power using imported Korean DO0SAN brand products.
Gas Working System:
Key components using the world's top brand products to ensure the high-quality of products, such as BOSCH, IMPCO, FISHER, MADAS.
Unit Control System：
We use specialized gas control system to realize the whole supervision and protection of the generator set runing. It can realize isolated grid running,multiple generator sets running together,grid connecting and remote monitoring.
Unit Design Concept：
Skid-mounted integrating with design and production.Imploded cooling system, control system and fuel decompression systems into platform.reducing the amount of on-site installated and commissioned time.
Safety Protection System：
Fuel system is equiped with safety valve,electromagnetic valve,warning system for combustible gas leak.[ optional] and remote monitoring system (optional).
Parts Supply Support:
DOOSAN engine component parts can provide a full range of spare parts and services to customers worldwide through a global DOOSAN Daewoo dealer network.

Remarks：
1、Scope of supply:gas engines, generators, controller, base, fan water tank, gas pressure reducing valve, gas filters, explosion-proof solenoid valve, starting batteries and connecting cables and accessories and technical data.
2、Requirements for air supply:from the unit within 1m before gas inlet pressure regulating valve, low gas pressure is 3 kpa; After the removal of light oil ,volume of methane content should not be less than 70%, low calorific value of no less than 32 mj/Nm3; H2S content≤20mg/Nm3, the total sulfur content ≤480mg/Nm3, impurities particle ≤5μm, impurity content ≤30mg/Nm3, no free water.
