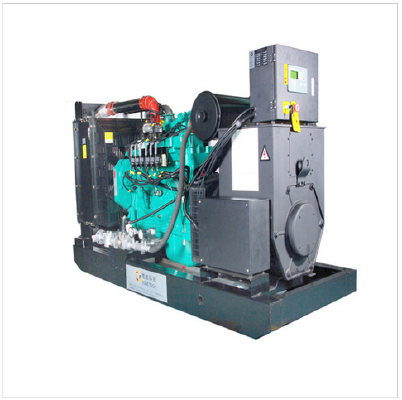

SDNE TECH S Series Hydrogen Generator Sets

Unit Power System:
Powered by the cummins and DEUTZ technology, engine technology is mature, stable and have a reliable quality, so that it is one of the world's most sophisticated products. (partly)
Gas Working System:
Engine with multi-point injection technology match with our own patented system , and can achieve a historic innovation in design and the technology of hydrogen intake control cam also ensure product stability and safe operation.
Unit Control System:
We use specialized gas control system to realize the whole supervision and protection of the generator set runing. It can realize isolated grid running,multiple generator sets running together,grid connecting and remote monitoring.
Unit Design Philosophy:
Skid-mounted integrated in design and production. The cooling systems, control systems, gas pressure system are integrated in the skid,so that can decrease the  on-site installation time and commissioning time.
Security System:
Hydrogen gas system comes standard with explosion relief valve, explosion-proof solenoid valve, combustible gas leak alarm system (optional) remote monitoring system (optional).
Parts Supply Suport:
80% of the parts can be found all over the Cummins and Deutz distributors and outlets to provide a comprehensive range of spare parts and services to customers worldwide. (For Cummins and DEUTZ models)
Scope of Supply:
Gas engine, generator, controller, base, fan water tank, gas valves, gas filter, explosion-proof solenoid valves, starting batteries and connecting cables, random accessories and technical information.
Gas Source Requirments:
Before the gas intake regulator from the unit within 1m, the gas pressure is not low 0.3MPa; H2S content ≤20mg / Nm3, the total sulfur content ≤480mg / Nm3, impurity size ≤5μm, impurities ≤30mg / Nm3, no free water .
